SG7110 input aperture is 10mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses digital driver, fully self-developed driver/ control algorithm/ motor. Strong interference resist performance, high speed, high precision, suitable for precision marking and welding, marking on the fly, etc.
Cost-effective Galvanometer Scanner Sino-Glavo SG7110 for Laser Marking Machine
Product description
SG7110 input aperture is 10mm (compatible with 1064nm 355nm 532nm 10.6um lenses ), uses digital driver, fully self-developed driver/ control algorithm/ motor. Strong interference resist performance, high speed, high precision, suitable for precision marking and welding, marking on the fly, etc.
Sino Galvo Low price SG7110 galvo scanner in pocket size for laser marking device
SG7110 type galvanometer has good running stability, high positioning accuracy, fast marking speed and strong anti-interference ability. The specific characteristics are as follows:
â– Adopt photoelectric sensor imported from the United States.
â– Differential photoelectric sensor accurately detects the position of the motor rotor, with good linearity, small drift, high resolution and repeated positioning accuracy.
â– Precise load design for 10mm lens, high motor assembly precision, reasonable structure, small static friction coefficient and zero offset, to ensure good dynamic characteristics of the system.
â– The driver has the function of position and speed advance detection, which greatly improves the dynamic response performance and scanning speed of the whole system.
â– Designed with overload, overcurrent and reverse polarity protection, making the system more reliable.
â– The whole system adopts electromagnetic compatibility optimization design, with high signal-to-noise ratio and strong anti-interference ability.
â– Solve common problems such as galvanometer motor temperature drift, signal interference and zero drift.
Technical Parameters：
Speed
Marking Speed(1)
5000mm/s
Writing Speed(2)
450cps
Step Response Time(1% of  full scale)
350us
Step Response Time(10% of  full scale)
750us
Tracking Error Time
≤164us
Precision and Error
Linearity
99.9%
Repeatability (RMS)
＜8μRad
Gain Error
＜5mRad
Zero Offset
＜5mRad
Long-term Drift Over 8 Â Hours
＜0.5mRad
Scale Drift
＜40PPM/℃
Zero Drift
＜15μRad/℃
Wavelength(3)
10600nm / 1064nm / 355nm
Power and Signal
Input Voltage
±15VDC
Rated Current
2A
Interface Signal
Digital
XY2-100
Analog
±5V
Machinery Scan Angle(4)
±11°
Working Current, Temperature, Dimension
Working Temperature
0℃–45℃
Storage Temperature
-10℃–60℃
Aperture
10mm
Galvanometer Scanner  Dimension (LxWxH)
118.5×96.5×93.6mm
Galvanometer Scanner Weight
≈1.65Kg

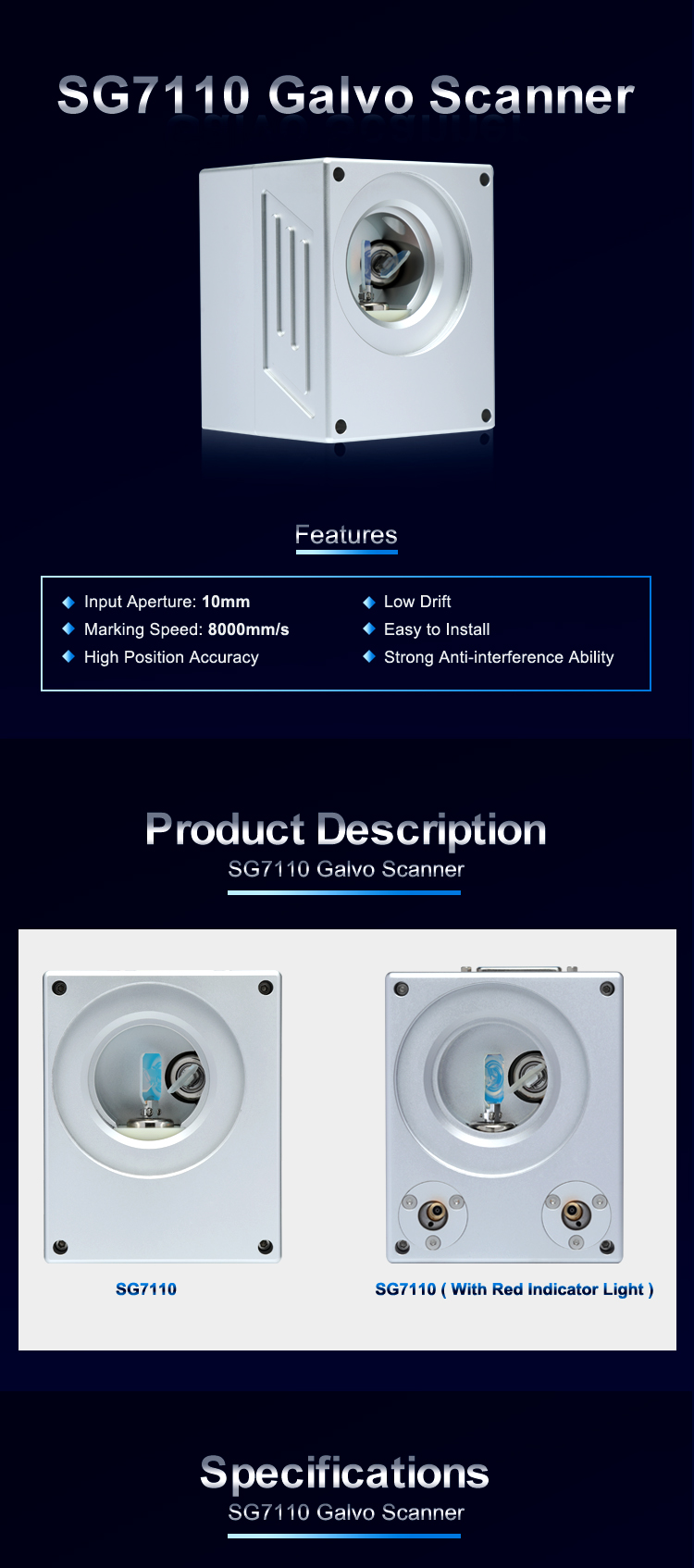

Product Description
Product Description
Remarks: The above parameters are obtained from the test after 30min of heating
(1) Use F-Theta lens, focal length 160mm, mark 2mm high single-line characters;
(2) Using F-Theta lens, the focal length is 160mm, and the number of single-line characters of 1mm height is marked per second;
(3) Special wavelength coating can be customized;
(4) The standard mechanical scanning angle is ±11°, and the Max mechanical scanning angle is ±15°, which can be customized if there are special requirements.
Features
1.Laser power output is stable,and light spot quality is good. Ultrahigh accuracy and fineness.
2.Quick marking speed at 2-3 times that of traditional machines.
3.There is no restriction in operation system.It is convenient in operation,with fully closed light paths,so it is stable,reliable and free in maintenance with ultra-long service life up to more than 100,000 hours.
4.No pollution,no noise,and no consumable materials.
5.High elector-optical conversion efficiency .
6.No need any maintenance, long life, small volume, suit for working in atrocious working conditions.

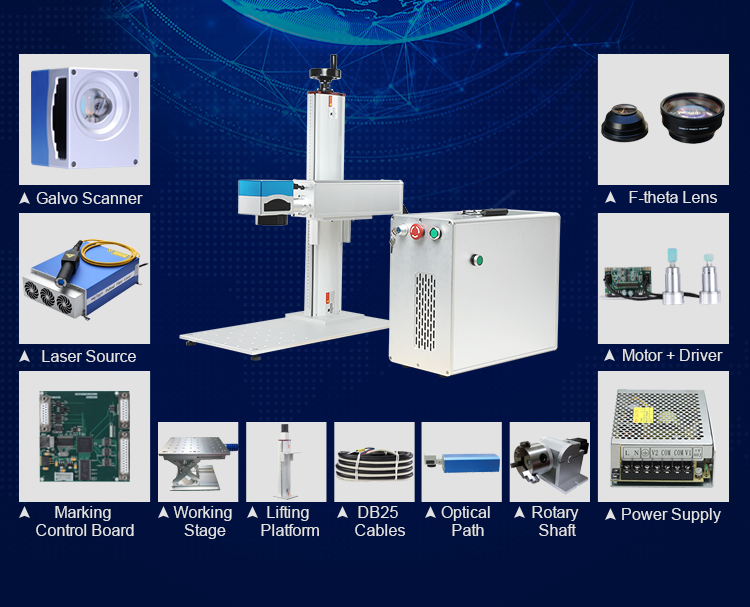

I LASER is a professional supplier of laser equipment and accessories, mainly engaged in laser marking machines, laser welding machines, laser cleaning machines, laser cutting machines and supporting accessories.
