EMPOWER Raytools Original Laser Protection Lens Spring Sealing Ring Laser Cutting Head Sealing Ring Pan Plug Seal
Product Description
EMPOWER raytools raytools original laser protection lens spring sealing ring laser cutting head sealing ring pan plug seal
These sealing rings washer are manufactured according to particularly stringent quality specifications. Highly precise and A special material to guarantees a long service life.
The advantage features of sealing rings & washer:
Unbeatable nozzle quality for Raytools BM109,BM111,BM114 and BM115
Manufactured according to particularly stringent quality specifications with imported copper material alloy, high precision and smooth inner wall.
High temperature resistance, high hardness, strong slag resistance.
Chrome-plated, effectively prevent oxidation, long service life
Minimal cutting gas usage
Product Description：
raytools original lens seal:

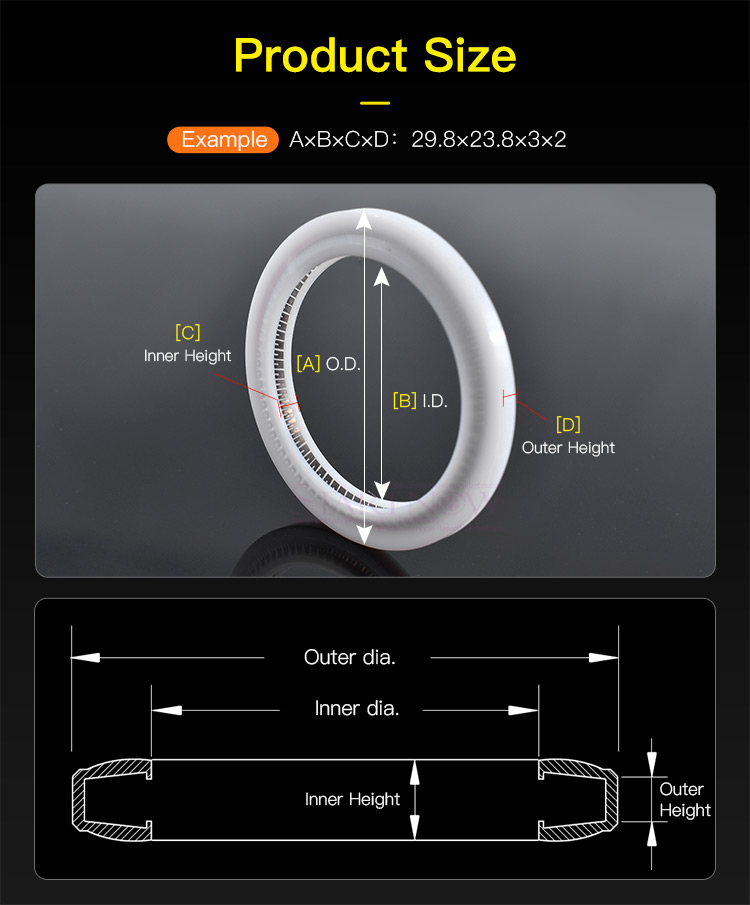

Specification of sealing ring for focusing protection lens: outer diameter 42.5mm*width 4mm*thickness 3.2mm Suitable for raytools cutting head BM114, BM115, BMH114, BMH115, BS06K, BS12K
Specification of sealing ring for focusing protection lens: outer diameter 32.2mm* inner diameter 24mm* thickness 3.55mm, suitable for raytools cutting head BT210, BT240, BMH109, BMH110, BMH111
Specification of sealing ring for collimation protection mirror: outer diameter 29.2mm* inner diameter 21mm* thickness 3.55mm, suitable for raytools cutting head BT210, BT240S, BM109, BM110, BM111
Specification of sealing ring for collimating protective mirror: outer diameter 35.5mm* inner diameter 27.7mm* thickness 3.2mm, suitable for raytools cutting head BW240, BW330, BT330
Specification of sealing ring for focusing protection lens: outer diameter 41.2mm* inner diameter 33.4mm* thickness 3.2mm, suitable for raytools cutting head BW240, BW330, BT330
