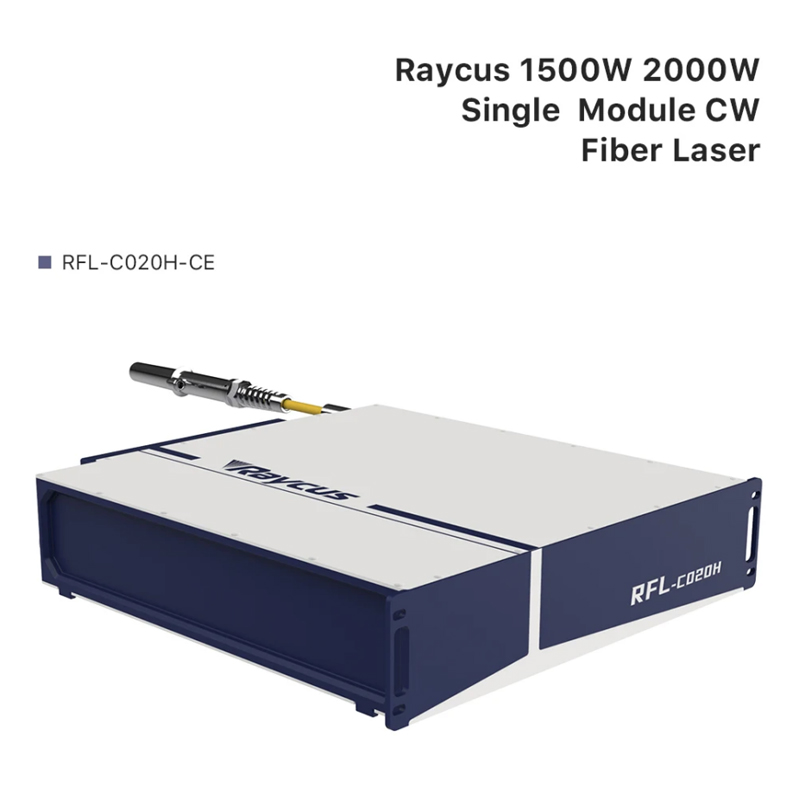

Raycus 1500W 2000W Global-Series CW Fiber Laser Source RFL-C020H-CE RFL-C025H-CE for Handheld Welding Machine
Raycus Fiber Laser is the first Chinese enterprise engaged in the research, development and scale production of high-power fiber lasers and core devices and the largest fiber laser R&D and production base with global influence in China.
It has higher photoelectric conversion efficiency, better and more stable beam quality, and stronger anti-high-reflection ability. At the same time, it introduces an optimized second-generation optical fiber transmission system to ensure a more stable and precise cutting effect in thick plate cutting. . This product is suitable for a variety of applications: cutting, welding, drilling, medical device processing, etc. The cut sheet has a narrow slit and a bright section, which has obvious advantages over other lasers of the same type in the market.
Description

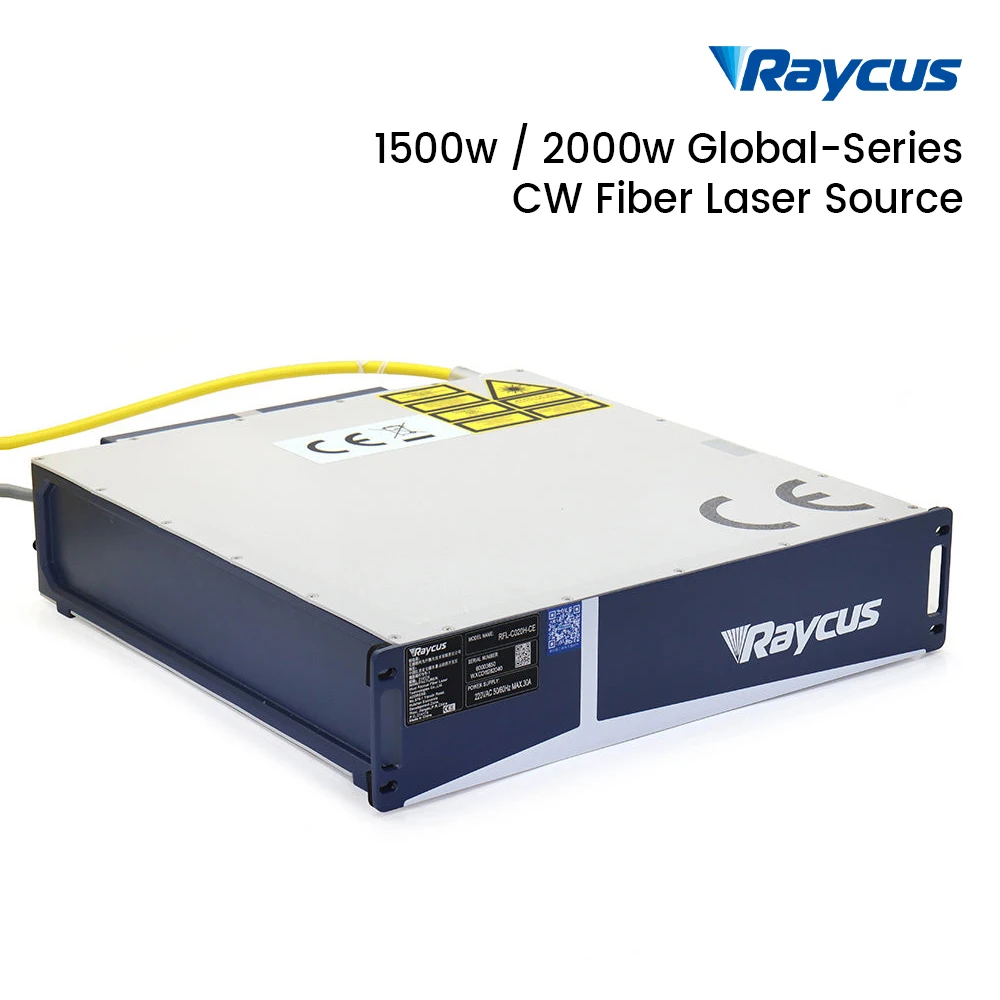

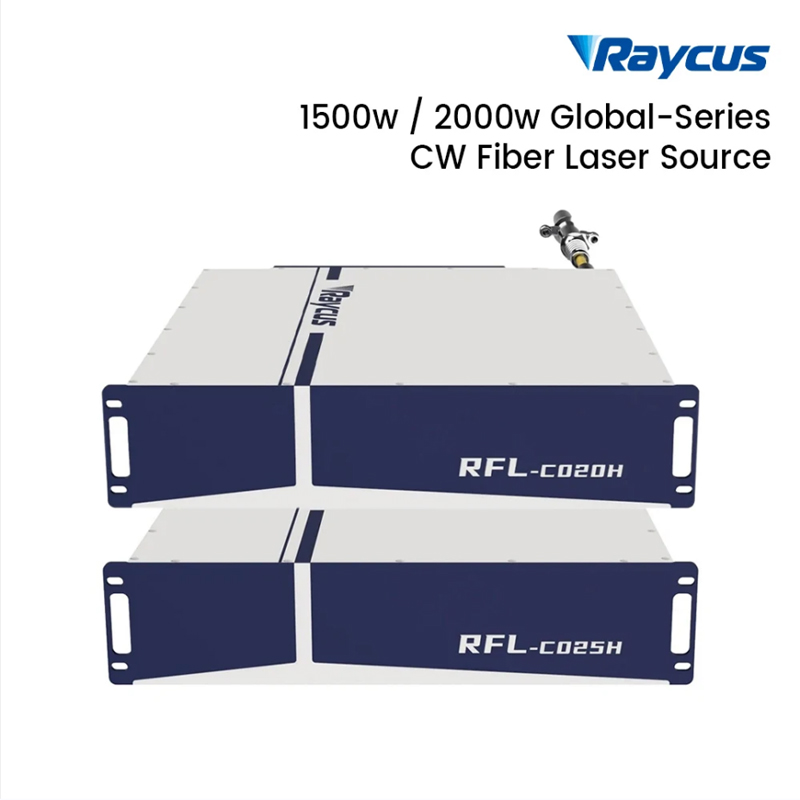

Raycus 1500W 2000W Global-Series CW Fiber Laser Source RFL-C020H-CE RFL-C025H-CE for Handheld Welding Machine

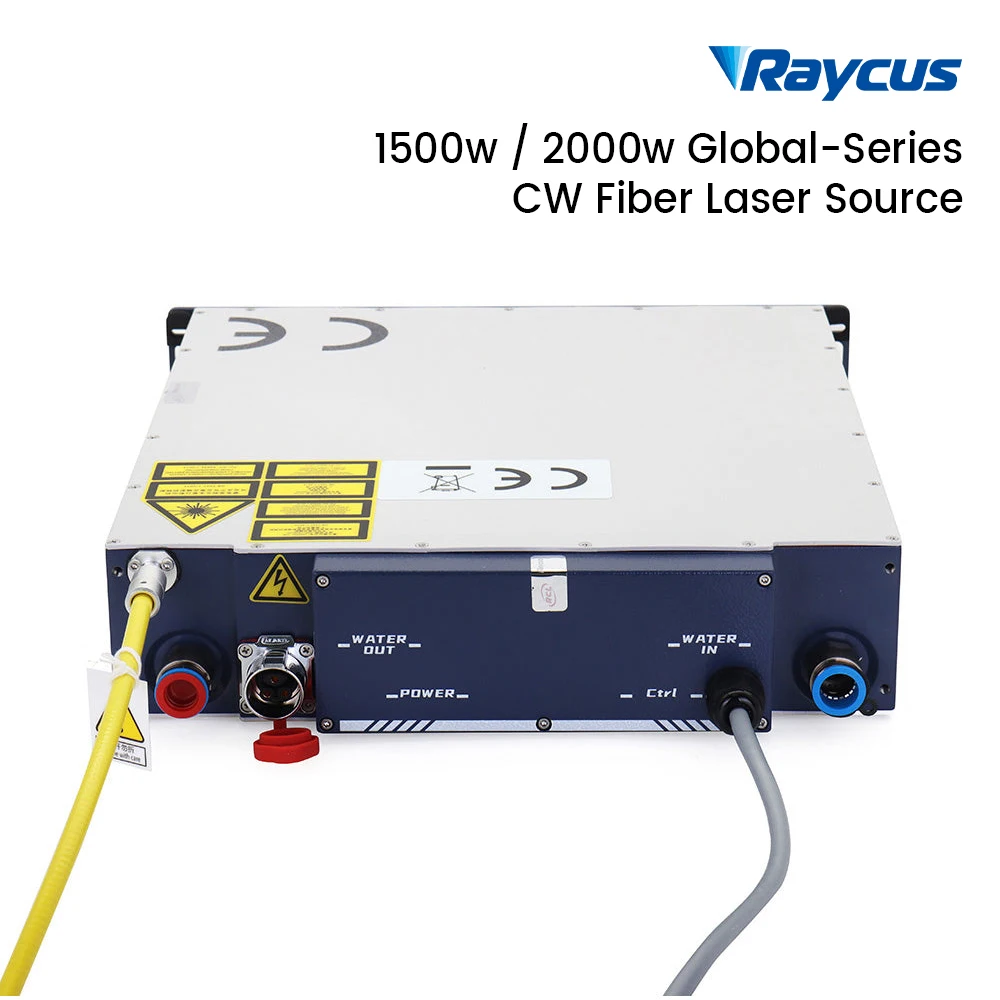

The Global-Series Handheld welding CW fiber lasers Range from 600W -3000W. This series laser source dedicated for both water-cooled and air-cooled handheld welding can be supported with one hand and comes with an external AC power supply, making it more efficient for integration into welding machines. Its optical cable is adapted to locking head and the armored pipe diameter is smaller, which reduces drag force during handheld welding.
- Lightweight
- High efficiency
- Maintenance-free operation
- High beam quality
- High integration
- Portable
- Average output power: (W): 1500
- Central wavelength: (nm): 1080±5
- Maximum modulation frequency: (kHz): 5
- Output power instability: ±1%
- Red laser: Yes
- Output connector: IQB
- output fiber core diameter (μm): 25 (customizable)
- beam quality(m2):<1.8
- polarization state: random
- output fiber length (m): 10(customizable)
- Input power (V AC ): 220
- Control mode: Control line/Bluetooth, Ethernet
- power adjustment range (%): 1-100
- Max. Power Consumption:<5.4kW

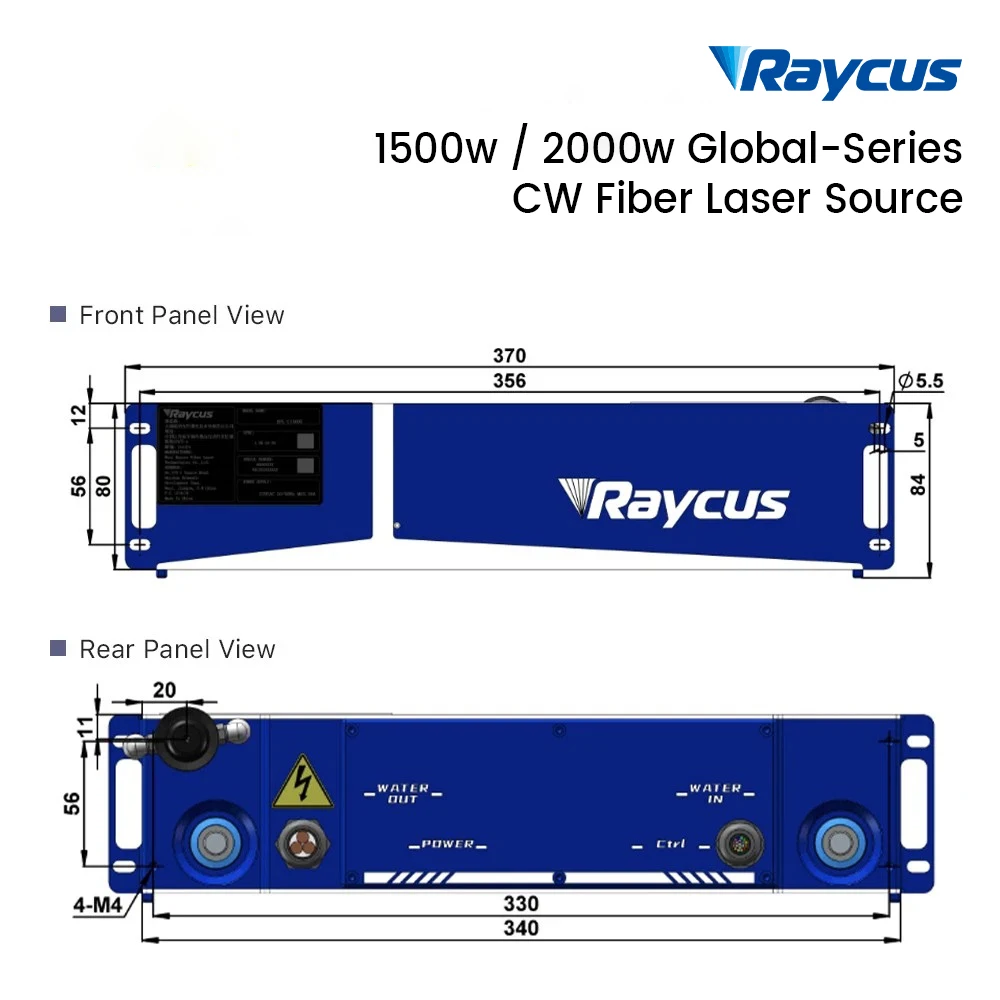

- Dimensions (mm ): 340×390×80
- Weight (kg): 3±1
- Cooling method: water cooling
- Working temperature (℃ ): 10-40
Application Of 1500W Global-Series CW Fiber Laser For Handheld Welding RFL-C020H-CE
- Metal Welding
- Handheld Welding
- Metal cutting
